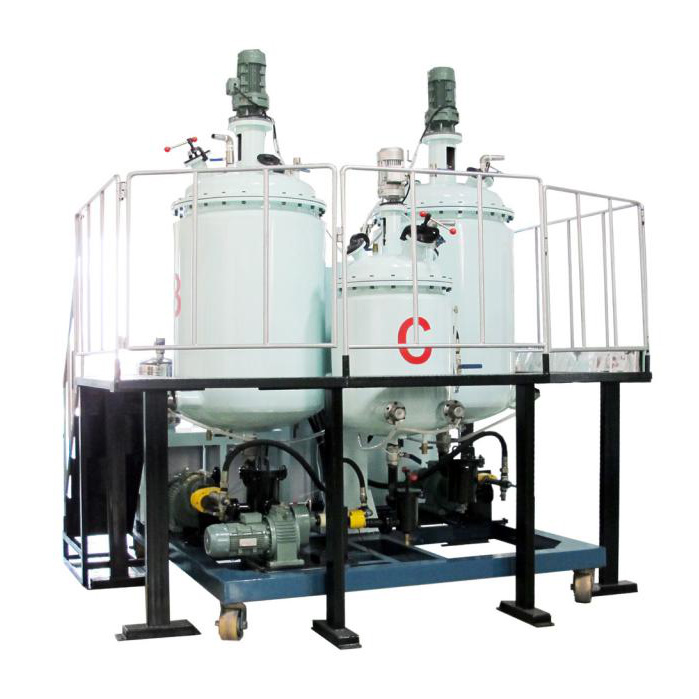

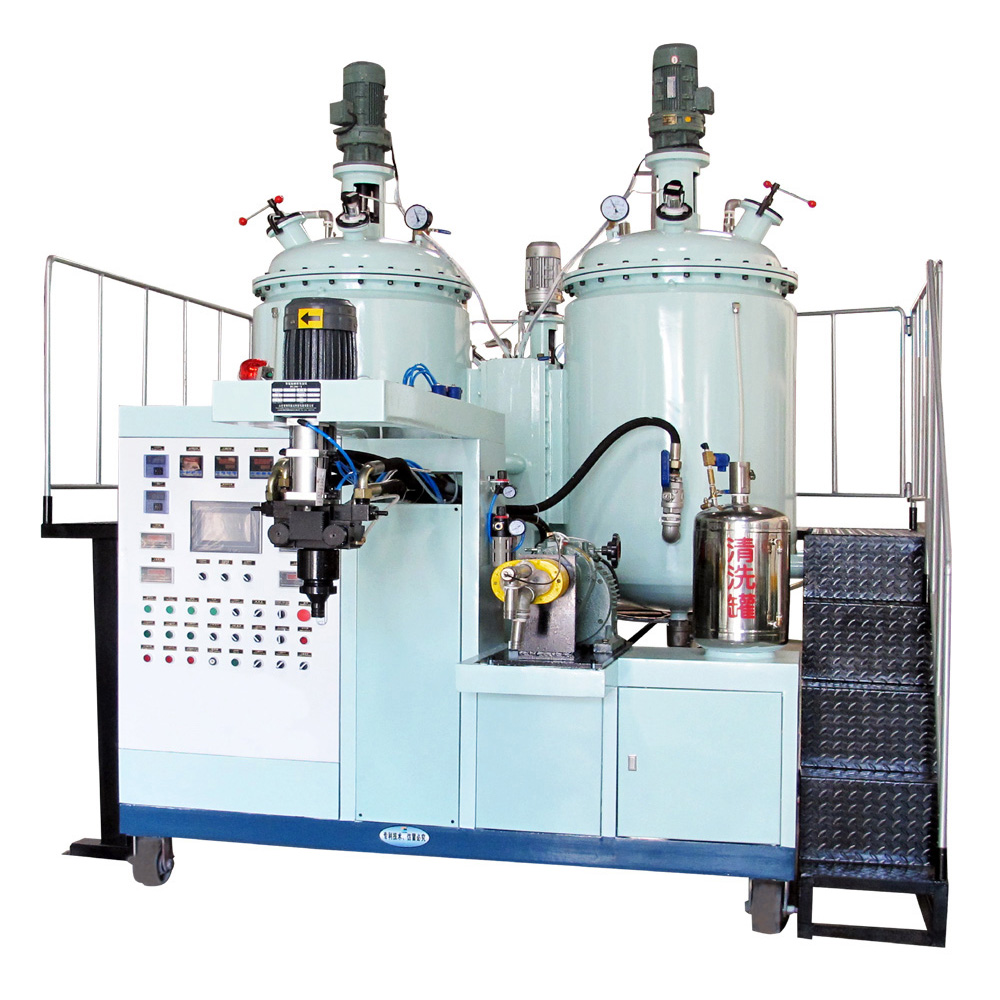

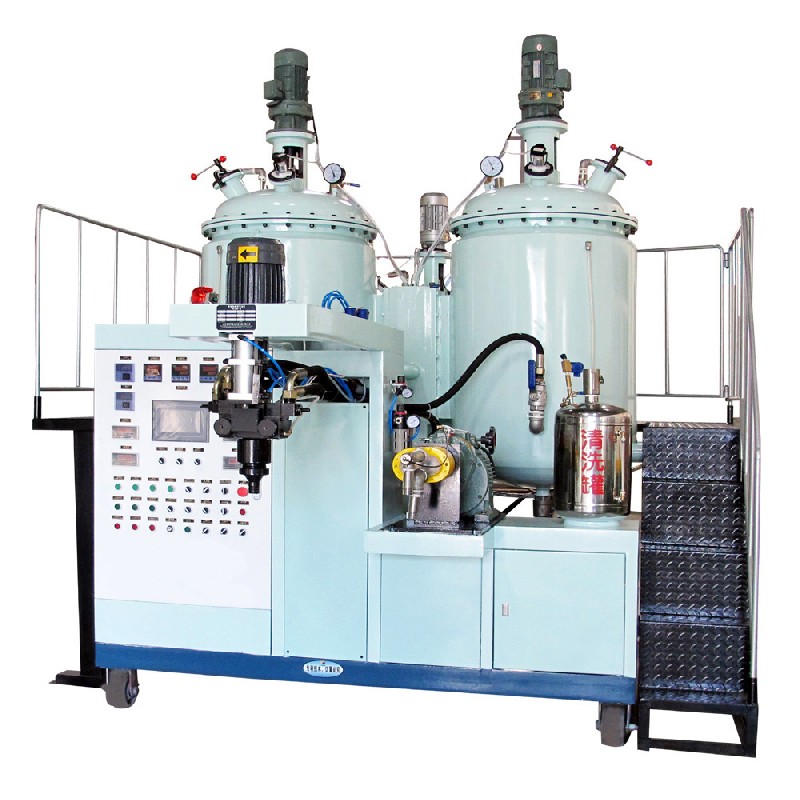

聚氨酯增压注胶机
For the production of rigid microporous polyurethane products, such as large engineering tire fillers.
-The booster pump delivers the mixture into the tire through high pressure, curing and fills to reach the solid tire effect.
-Accurate measurement, using high precision low speed gear pump, error of 5 ‰.
-Mix evenly, using high shear mixing head, reliable performance.
-Pour head, using floating mechanical seal, no air leakage, prevent feeding.
-The material temperature is stable, the material tank adopts their own heating temperature control system, the temperature control is stable, the error is <± 2C.
-The whole machine adopts 10-inch touch screen and controlled by PLC module, which can be poured regularly and quantitatively and washed automatically.
Model / Type | Output capability (kg / min) | Total power(Kw) | Head mixing speed (r / min) | Mixing ratio | Overall dimensions (L*W*H) (mm) Outline size | weight (kg) |
CPU30F-C | 15~50 | 18.5 | 3500~5000 | 100:20~50 | 1900*21000*2600 | 1750 |
Component name | Mixing ratio (adjustable) | Operating temperature (℃) | viscosity (CPS) |
A(polyol) | 100 | normal temperature | <2000 |
B(hardener) | 80~120 | normal temperature | <1000 |
