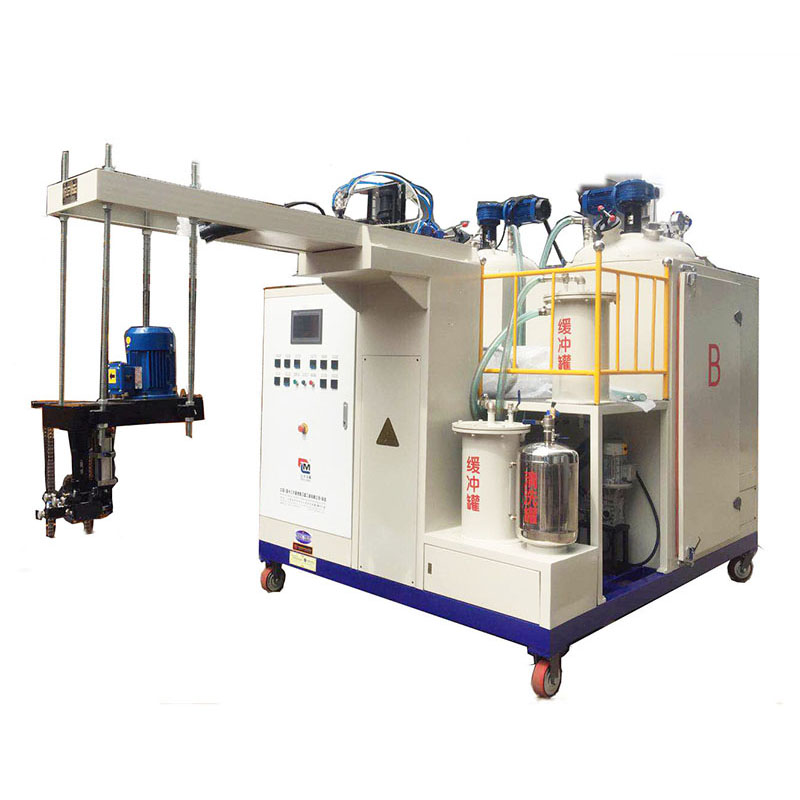

聚氨酯弹性体中温轮成套设备系列
For the MDI type prepolymer method to produce CPU products, the production of low hardness polyurethane elastomer products, color can be directly added in the machine mixing device.
-MDI as pre-polymer, environmental protection and safety, future development direction.
-Metering accuracy: using high precision low speed gear pump, error of 5 ‰.
-Even mixing: using multi-tooth high shear mixed head, reliable performance.
-Using oven type heating, fan circulation, energy saving and power saving, compact appearance.
-Products macroscopic bubbles, with vacuum degassing system.
-The whole system is controlled by the PLC touch screen, with good handling, timing and quantitative pouring, and high degree of automation.
Model / Type | CPU20FM-H |
Output capability (g / s) | 15~50 |
Component name | Mixing ratio (adjustable) | Operating temperature (℃) | viscosity (CPS) |
A(polyol) | 100 | 40~60 | 800~2000 |
B(MDI Sempremer) | 95~105 | 40~60 | 200~500 |
S(Color or additive ) | 0.3~1 | normal temperature | 50~2000 |
