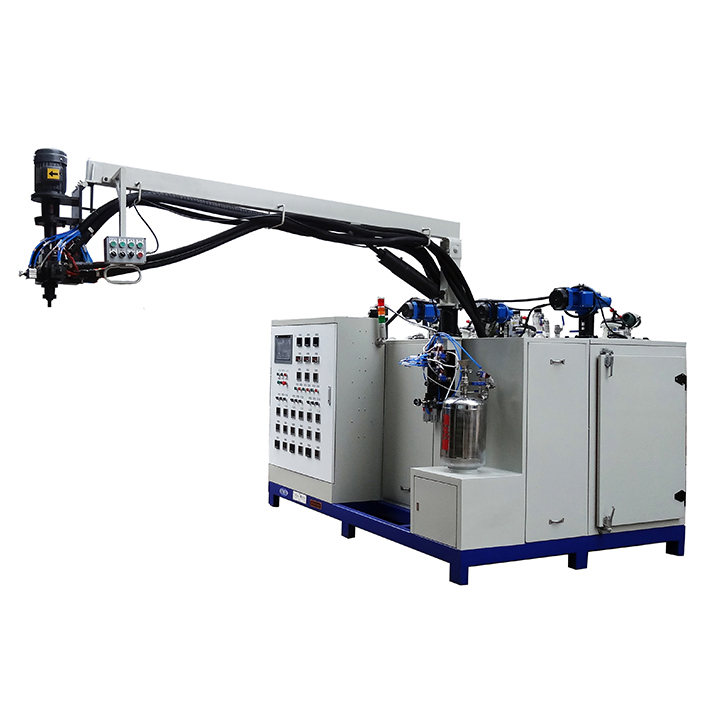

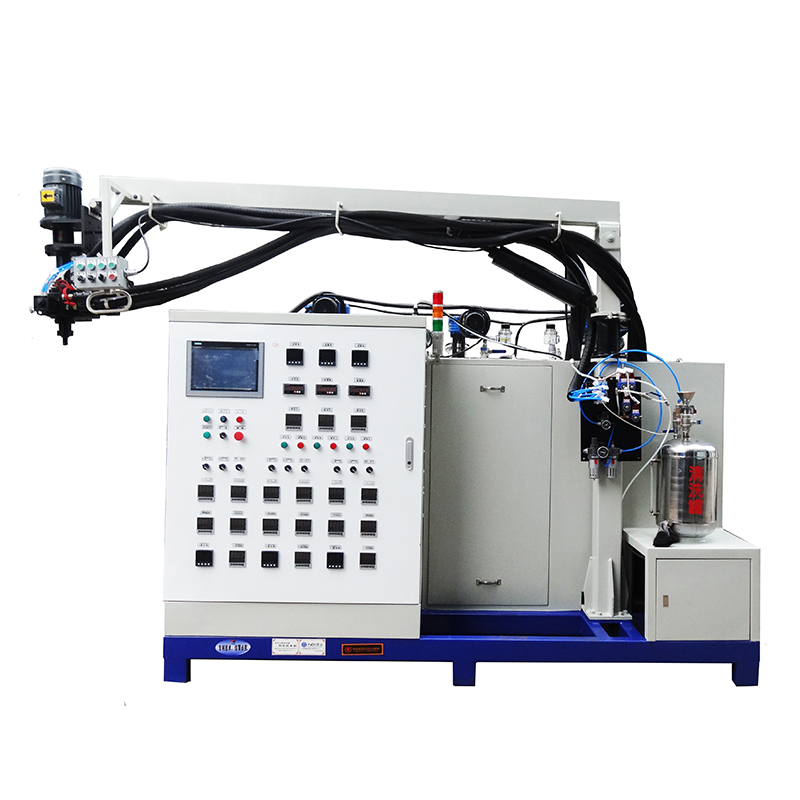

TPU全自动数控热塑型弹性体浇注机
For the production of linear block copolymer products composed of oligomer polyol soft segment and isocyanate chain extension hard fragment. TPU application market, medical supplies, sports equipment, industrial wear-resistant parts gear, hoses, cables, airbags, waterproof membrane, electronic packaging membrane, etc
-Accurate measurement, through the mass flowmeter, using closed loop control, control servo motor to adjust the measurement pump speed, ensure the measurement accuracy, error of 5 ‰.
-Mix evenly, using multitooth high shear hybrid head, reliable performance.
-Pour head: use floating mechanical seal to prevent feeding.
-Material temperature stability: using a multi-point temperature control device, the error is <± 2℃
-Products macroscopic bubbles, with vacuum degassing system.
-Energy saving and power saving: using oven type, high thermal efficiency, energy saving.
-Material tank with liquid crystal display liquid level meter, automatic feeding. The whole system is controlled by PLC and touch screen, display pressure, temperature, speed flow, pouring, air flushing, cleaning and other parameters, can realize the whole monitoring fault alarm, high degree of automation.
Project / Type | TPU30F-A1 | TPU30F-A 2 | TPU30F-A 3 | TPU30F-A 4 |
Output capability (g / min) | 2000~5000 | 3000~8000 | 4000~12000 | 5000~15000 |
Component name | Mixing ratio (adjustable) | Operating temperature (℃) | viscosity (CPS) |
A Polyol | 100 | 25~130 | <2000 |
B MDI | 15~60 | 25~130 | <500 |
C BDO | 4~15 | 25~130 | <200 |
